3-Bedroom Ranch House Plan — 1,609 Sq Ft (Plan 1609)
by American Design Gallery
3 cottage w/ Walk-in Pantry and side-load Garage
1,609Sq Ft
3Bedrooms
2Baths
1Stories
54'Width
48'Depth
Features
- ●Vaulted Ceilings
- ●Plant Shelves
- ●Covered Porch
- ●Walk-In Closet
- ●Fireplace
- ●Walk-In Pantry

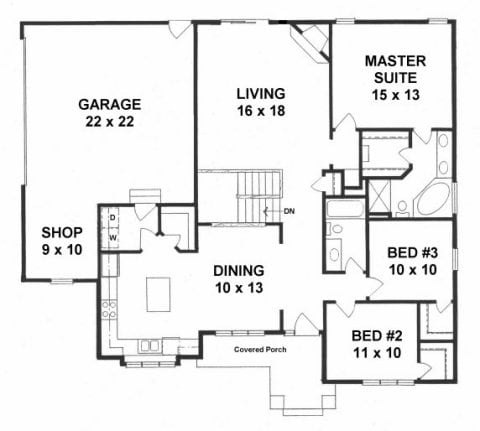

Floor Plan
Copyright 2026 ADG, Inc.

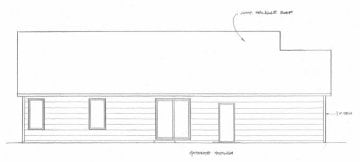

Elevation
Loading...
Will this plan fit your lot?
Enter your lot dimensions to see if Plan #1609 (54' × 48') fits
Try the Lot Analysis Tool →Have a question about this plan?
Ask about modifications, pricing, or anything else about Plan #1609
Send an Enquiry →Unlimited Licensing
- ✓Print as many copies as you need
- ✓Have changes made by your local draftsman
- ✓Share with your builder, engineer, and permitting office
- ✓One-time purchase, no recurring fees
Details
Heated Area
1609 sq. ft
Roof
Truss 6/12 main pitch 7.75/12 front pitch
Floor
Truss or TJI
Walls
8' plates (2x6) L=186' (insulated)
Ceilings
Vaulted - Living, Dining, Foyer, Kitchen & MBR
Basement
Approx. 1480 sq. ft Full w/ 9' Ceilings
Opt'l Finish
Rec room 1 Bedroom Full Bath
Masonry
Approx. 445 sq. ft Front only (includes front offsets) No masonry ledge.
Kitchen
Approx. 12' x 14' Base cabs L=22' Upper cabs L=16'
Misc
Csmt windows Gas-log Fireplace Walk-in Pantry
