3-Bedroom Ranch House Plan — 1,625 Sq Ft (Plan 1625)
by American Design Gallery
3 bedroom Ranch w/ in-law suites & 3 Car Garage
1,625Sq Ft
3Bedrooms
2.5Baths
1Stories
60'Width
50'Depth
Features
- ●Vaulted Ceilings
- ●Bay Window
- ●Covered Porch
- ●Covered Deck
- ●Walk-In Closet
- ●Fireplace
- ●10' Ceilings
- ●Walk-In Pantry

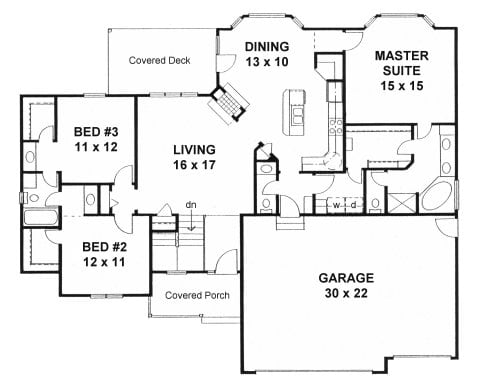

Floor Plan
Copyright 2026 ADG, Inc.

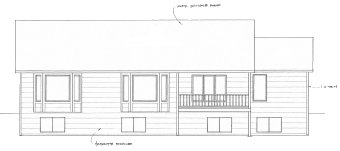

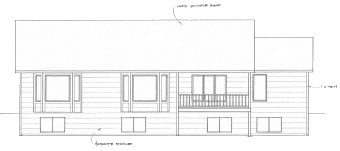

Elevation
Loading...
Will this plan fit your lot?
Enter your lot dimensions to see if Plan #1625 (60' × 50') fits
Try the Lot Analysis Tool →Have a question about this plan?
Ask about modifications, pricing, or anything else about Plan #1625
Send an Enquiry →Unlimited Licensing
- ✓Print as many copies as you need
- ✓Have changes made by your local draftsman
- ✓Share with your builder, engineer, and permitting office
- ✓One-time purchase, no recurring fees
Details
Heated Area
1625 sq. ft
Roof
Truss 6/12 main pitch 8/12 front pitch
Floor
Truss or TJI
Walls
8' & 10' plates L=198' (insulated)
Ceilings
10' - Living, Kitchen & Bed #2 Vaulted - Dining & MBR
Basement
Approx. 1496 sq. ft View-out
Opt'l Finish
Rec room 3 Bedrooms Full Bath
Masonry
Approx. 360 sq. ft Front only (includes front offsets)
Kitchen
Approx. 12' x 16' Base cabs L=17' Upper cabs L=15' Approx. 44" Pantry
Misc
Csmt windows Gas-log Fireplace
