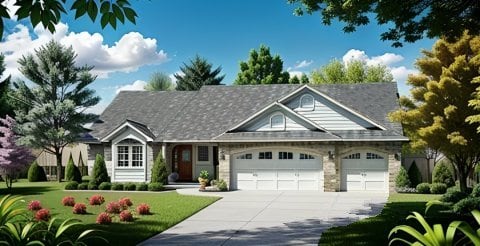

3-Bedroom Ranch House Plan — 1,427 Sq Ft (Plan 1427)
by American Design Gallery
3 bedroom Ranch w/ partially enclosed deck and 3-Car Garage
1,427Sq Ft
3Bedrooms
2Baths
1Stories
52'Width
51'Depth
Features
- ●Vaulted Ceilings
- ●Plant Shelves
- ●Covered Porch
- ●Walk-In Closet
- ●Fireplace

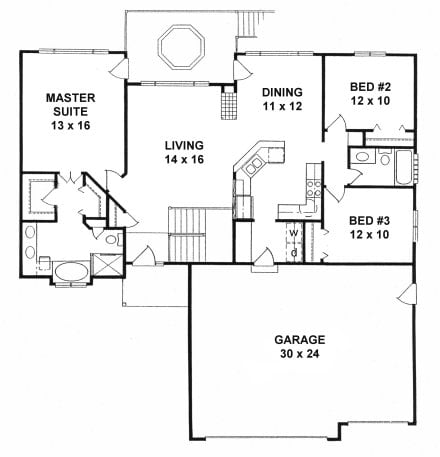

Floor Plan
Copyright 2026 ADG, Inc.

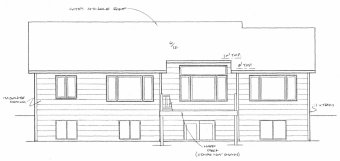

Elevation
Loading...
Will this plan fit your lot?
Enter your lot dimensions to see if Plan #1427 (52' × 51') fits
Try the Lot Analysis Tool →Have a question about this plan?
Ask about modifications, pricing, or anything else about Plan #1427
Send an Enquiry →Unlimited Licensing
- ✓Print as many copies as you need
- ✓Have changes made by your local draftsman
- ✓Share with your builder, engineer, and permitting office
- ✓One-time purchase, no recurring fees
Details
Heated Area
1427 sq. ft
Roof
Truss 6/12 main pitch 7/12 front pitch
Floor
Truss or TJI
Walls
8' plates L=172' (insulated)
Ceilings
Vaulted - Dining, MBR & Bath 10' - Living Room & Kitchen
Basement
Approx. 1310 sq. ft View-out (rear)
Opt'l Finish
Rec room 2 Bedrooms Full Bath
Masonry
Approx. 304 sq. ft Front only (includes front offsets)
Kitchen
Approx. 12' x 10' Base cabs L=17' Upper cabs L=16'
Misc
Csmt windows Gas-log Fireplace NOTE: Plans include opt'l brick Elev.
