3-Bedroom Ranch House Plan — 1,650 Sq Ft (Plan 1650)
by American Design Gallery
3 Bed Ranch with split bedroom suites
Features
- ●Covered Porch
- ●Covered Deck
- ●Walk-In Closet
- ●Fireplace
- ●10' Ceilings
- ●Walk-In Pantry

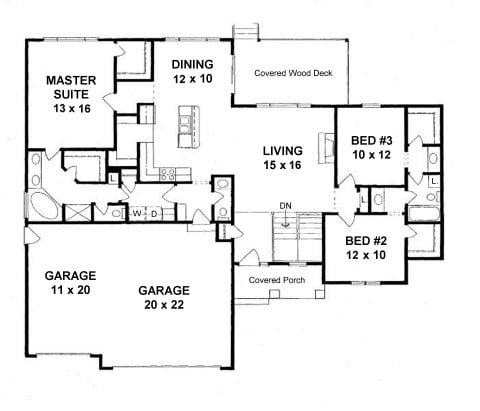

Floor Plan
Copyright 2026 ADG, Inc.

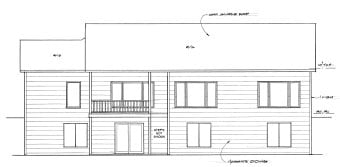

Elevation
Loading...
Will this plan fit your lot?
Enter your lot dimensions to see if Plan #1650 (62' × 50') fits
Try the Lot Analysis Tool →Have a question about this plan?
Ask about modifications, pricing, or anything else about Plan #1650
Send an Enquiry →Unlimited Licensing
- ✓Print as many copies as you need
- ✓Have changes made by your local draftsman
- ✓Share with your builder, engineer, and permitting office
- ✓One-time purchase, no recurring fees
Details
Heated Area
1650 sq. ft
Roof
Truss 6/12 main pitch 8/12 front pitch
Floor
Truss or TJI
Walls
10' plates L=198' (insulated)
Ceilings
10' Thru-out
Basement
Approx. 1514 sq. ft Walk-out
Opt'l Finish
Rec room 2 Bedrooms Full Bath
Masonry
Approx. 200 sq. ft Stone Front only (includes front offsets)
Kitchen
Approx. 10' x 12' Base cabs L=14' Upper cabs L=16'
Misc
Walk-in Pantry Csmt windows Gas-log Fireplace
Similar Plans
- Plan #14252 bedroom cottage w/ side load Garage & Shop — 1457 sq ft
- Plan #1450Country Ranch w/ Walk-in pantry, 2-Car Garage — 1450 sq ft
- Plan #1451split-bedroom narrow lot Ranch w/ Walk-in pantry, 3-Car Garage and Heatrthroom — 1451 sq ft
About Plan #1650
This Ranch features "open-traffic" thru-out with 10' ceilings, Walk-in closets (his & hers in MBR) and private dressing areas in all bedrooms. Check out the Utility room access from the Master Suite, "hidden" walk-in Pantry in the Kitchen and the half bath off the Mud room.
