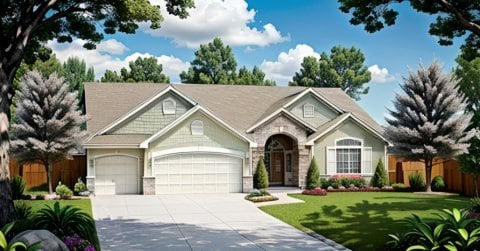

3-Bedroom Ranch House Plan — 1,451 Sq Ft (Plan 1451)
by American Design Gallery
split-bedroom narrow lot Ranch w/ Walk-in pantry, 3-Car Garage and Heatrthroom
1,451Sq Ft
3Bedrooms
2Baths
1Stories
54'Width
49'Depth
Features
- ●Vaulted Ceilings
- ●Plant Shelves
- ●Bay Window
- ●Covered Porch
- ●Covered Deck
- ●Walk-In Closet
- ●Fireplace
- ●Walk-In Pantry

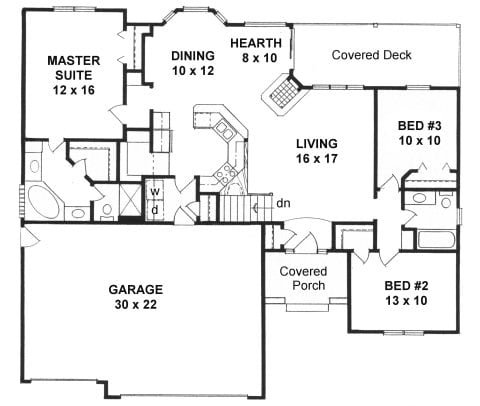

Floor Plan
Copyright 2026 ADG, Inc.

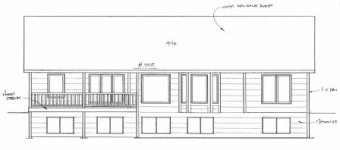

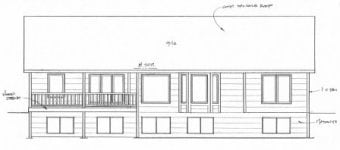

Elevation
Loading...
Will this plan fit your lot?
Enter your lot dimensions to see if Plan #1451 (54' × 49') fits
Try the Lot Analysis Tool →Have a question about this plan?
Ask about modifications, pricing, or anything else about Plan #1451
Send an Enquiry →Unlimited Licensing
- ✓Print as many copies as you need
- ✓Have changes made by your local draftsman
- ✓Share with your builder, engineer, and permitting office
- ✓One-time purchase, no recurring fees
Details
Heated Area
1451 sq. ft
Roof
Truss 6/12 main pitch 8/12 front pitch
Floor
Truss
Walls
8' plates (10' TDP porch area only) L=194' (insulated)
Ceilings
Vaulted - Living, Dining, Kitchen, MBR & Bed #2 10' - Foyer
Basement
Approx. 1312 sq. ft View-out
Opt'l Finish
Rec room 2 Bedrooms Full Bath
Masonry
Approx. 252 sq. ft Front only (includes front offsets)
Kitchen
Approx. 12' x 11' Base cabs L=14' Upper cabs L=13'
Misc
Csmt windows Gas-log Fireplace
