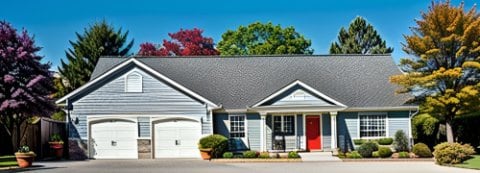

3-Bedroom Ranch House Plan — 1,700 Sq Ft (Plan 1700)
by American Design Gallery
3 bedroom Ranch w/ Family room
1,700Sq Ft
3Bedrooms
2Baths
1Stories
58'Width
66'Depth
Features
- ●Vaulted Ceilings
- ●Plant Shelves
- ●Bay Window
- ●Covered Porch
- ●Walk-In Closet
- ●Fireplace

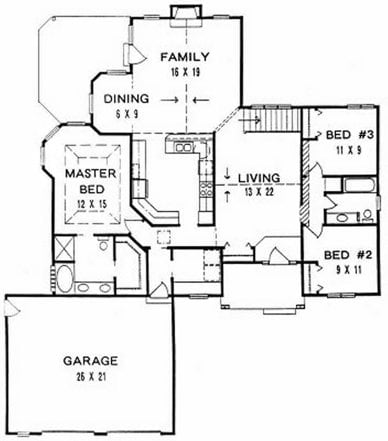

Floor Plan
Copyright 2026 ADG, Inc.
Loading...
Will this plan fit your lot?
Enter your lot dimensions to see if Plan #1700 (58' × 66') fits
Try the Lot Analysis Tool →Have a question about this plan?
Ask about modifications, pricing, or anything else about Plan #1700
Send an Enquiry →Unlimited Licensing
- ✓Print as many copies as you need
- ✓Have changes made by your local draftsman
- ✓Share with your builder, engineer, and permitting office
- ✓One-time purchase, no recurring fees
Details
Heated Area
1700 sq. ft
Roof
Truss 6/12 main pitch 7/12 front pitch
Floor
Truss or TJI
Walls
8' plates L=198' (insulated)
Ceilings
Vaulted - Living & Family Coffer - MBR
Basement
Approx. 1565 sq. ft Full Basement
Opt'l Finish
Rec room 2 Bedrooms Full Bath
Masonry
Approx. 248 sq. ft Front only (includes front offsets)
Kitchen
Approx. 12' x 13' Base cabs L=26' Upper cabs L=28' 24" Pantry
Misc
Csmt windows W/B Fireplace
