3-Bedroom Ranch House Plan — 1,720 Sq Ft (Plan 1720)
by American Design Gallery
3 bedroom Ranch w/ 3-Car Garage, formal Dining and Hearth Room
1,720Sq Ft
3Bedrooms
2Baths
1Stories
67'Width
51'Depth
Features
- ●Window Seat
- ●Bay Window
- ●Covered Porch
- ●Covered Deck
- ●Walk-In Closet
- ●Fireplace
- ●9' Ceilings
- ●10' Ceilings

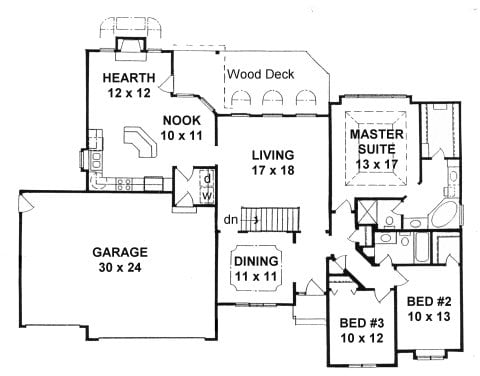

Floor Plan
Copyright 2026 ADG, Inc.

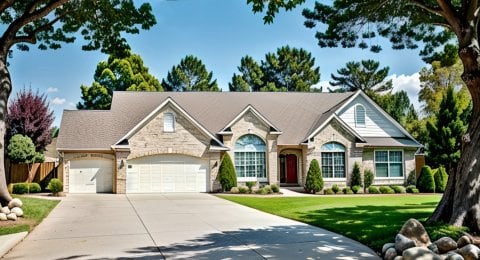

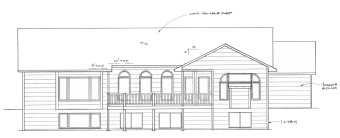

Elevation
Loading...
Will this plan fit your lot?
Enter your lot dimensions to see if Plan #1720 (67' × 51') fits
Try the Lot Analysis Tool →Have a question about this plan?
Ask about modifications, pricing, or anything else about Plan #1720
Send an Enquiry →Unlimited Licensing
- ✓Print as many copies as you need
- ✓Have changes made by your local draftsman
- ✓Share with your builder, engineer, and permitting office
- ✓One-time purchase, no recurring fees
Details
Heated Area
1720 sq. ft
Roof
Truss 6/12 main pitch 10/12 front pitch
Floor
Truss or TJI
Walls
9' & 10' plates L=224' (insulated)
Ceilings
10' - Living, Dining & Foyer 9' - Kitchen, Nook & Hearth Coffer - MBR
Basement
Approx. 1572 sq. ft View-out
Opt'l Finish
Rec room 2 Bedrooms Full Bath
Masonry
Approx. 325 sq. ft Brick 127 Stone 207 Front only (includes front offsets)
Kitchen
Approx. 13' x 10' Base cabs L=17' Upper cabs L=15' 18" Pantry
Misc
Csmt windows Gas-log Fireplace
