3-Bedroom Ranch House Plan — 1,785 Sq Ft (Plan 1785)
by American Design Gallery
3 bedroom narrow lot Ranch w/ Hearth room and 3-Car Garage
1,785Sq Ft
3Bedrooms
2Baths
1Stories
54'Width
62'Depth
Features
- ●Vaulted Ceilings
- ●Plant Shelves
- ●Bay Window
- ●Covered Porch
- ●Walk-In Closet
- ●Fireplace
- ●12' ceilings

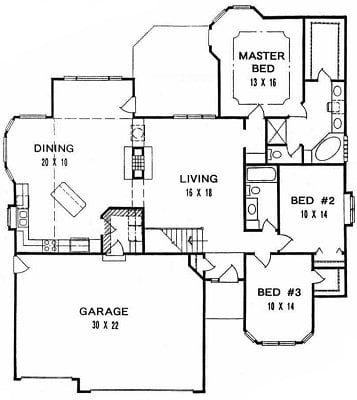

Floor Plan
Copyright 2026 ADG, Inc.
Loading...
Will this plan fit your lot?
Enter your lot dimensions to see if Plan #1785 (54' × 62') fits
Try the Lot Analysis Tool →Have a question about this plan?
Ask about modifications, pricing, or anything else about Plan #1785
Send an Enquiry →Unlimited Licensing
- ✓Print as many copies as you need
- ✓Have changes made by your local draftsman
- ✓Share with your builder, engineer, and permitting office
- ✓One-time purchase, no recurring fees
Details
Heated Area
1785 sq. ft
Roof
Truss 8/12 pitch
Floor
Truss or TJI
Walls
8' & 9' plates L=232' (insulated)
Ceilings
12'- Living, Dining, Kitchen & Hearth room Tray - MBR 9'- Bed #3
Basement
Approx. 1632 sq. ft View-out
Opt'l Finish
Rec room 2 Bedrooms Full Bath
Masonry
Approx. 380 sq. ft Front only (includes front offsets)
Kitchen
Approx. 13' x 11' Base cabs L=20' Upper cabs L=15' 24" Pantry
Misc
Csmt windows Gas-log Fireplace
