3-Bedroom Ranch House Plan — 1,865 Sq Ft (Plan 1865)
by American Design Gallery
3 bedroom Ranch w/ oversized 3-Car Garage, Walk-in Pantry and Hearth room
1,865Sq Ft
3Bedrooms
2Baths
1Stories
80'Width
53'Depth
Features
- ●Window Seat
- ●Bay Window
- ●Covered Porch
- ●Covered Deck
- ●Walk-In Closet
- ●Fireplace
- ●9' Ceilings
- ●10' Ceilings
- ●Walk-In Pantry

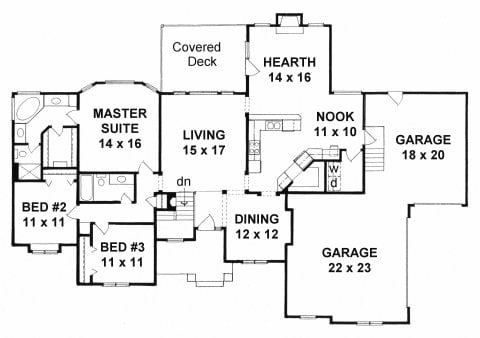

Floor Plan
Copyright 2026 ADG, Inc.

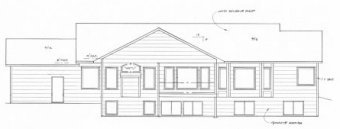

Elevation
Loading...
Will this plan fit your lot?
Enter your lot dimensions to see if Plan #1865 (80' × 53') fits
Try the Lot Analysis Tool →Have a question about this plan?
Ask about modifications, pricing, or anything else about Plan #1865
Send an Enquiry →Unlimited Licensing
- ✓Print as many copies as you need
- ✓Have changes made by your local draftsman
- ✓Share with your builder, engineer, and permitting office
- ✓One-time purchase, no recurring fees
Details
Heated Area
1865 sq. ft
Roof
Truss 6/12 main pitch 8/12 front pitch
Floor
Truss or TJI
Walls
8' & 9' plates L=234' (insulated)
Ceilings
9'- Living, Kitchen, Nook, Hearth, MBR & Bath 10'- Dining
Basement
Approx. 1690 sq. ft View-out
Opt'l Finish
Rec room 2 Bedrooms Full Bath
Masonry
Approx. 612 sq. ft Front only (includes front off-sets)
Kitchen
Approx. 13' x 13' Base cabs L=19' Upper cabs L=14' 36" Desk Walk-in Pantry
Misc
Csmt windows Gas-log Fireplace
