3-Bedroom Bi-Level House Plan — 1,230 Sq Ft (Plan 1230)

by American Design Gallery

3 bedroom most popular Bi-level home

Plan #1230

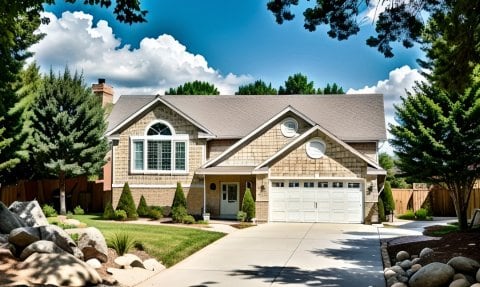

Plan # 1230 - Bi-Level | Small render view

Specifications

  • ●1230 sq ft
  • ●44' wide x 48' deep
  • ●3 bedrooms
  • ●2 baths

Features

  • ●Vaulted Ceilings
  • ●Plant Shelves
  • ●Bay Window
  • ●Covered Porch
  • ●Walk-In Closet
  • ●Fireplace

Floor Plan

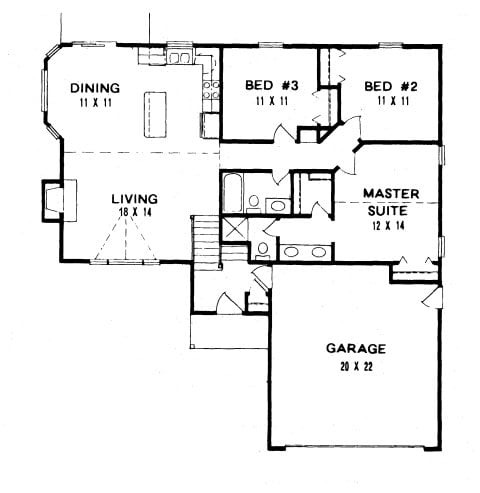

First Floor plan for #1230

Copyright 2026 ADG, Inc.

Loading...

Unlimited Licensing

  • ✓Print as many copies as you need
  • ✓Have changes made by your local draftsman
  • ✓Share with your builder, engineer, and permitting office
  • ✓One-time purchase, no recurring fees

Details

Heated Area

1230 sq. ft

Roof

Truss 5/12 main pitch 8/12 front pitch

Floor

Truss

Walls

8' plates L=160' (insulated)

Ceilings

Vaulted - Living, Dining & MBR

Basement

Approx. 1063 sq. ft View-out

Opt'l Finish

Rec room 2 Bedrooms 3/4 Bath

Masonry

Approx. 264 sq. ft Front only (includes front offsets)

Kitchen

Approx. 10' x 11' Base cabs L=18' Upper cabs L=15'

Misc

Csmt windows W/B Fireplace
