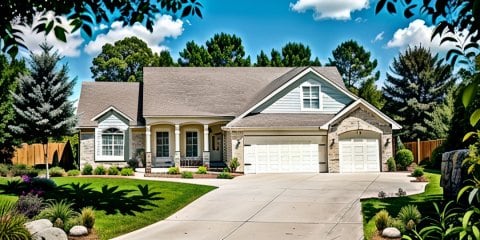

3-Bedroom Ranch House Plan — 1,286 Sq Ft (Plan 1286)
by American Design Gallery
3 bedroom Ranch w/ 3-Car Garage and bonus space
Features
- ●Vaulted Ceilings
- ●Plant Shelves
- ●Window Seat
- ●Bay Window
- ●Covered Porch
- ●Walk-In Closet
- ●Fireplace
Floor Plans

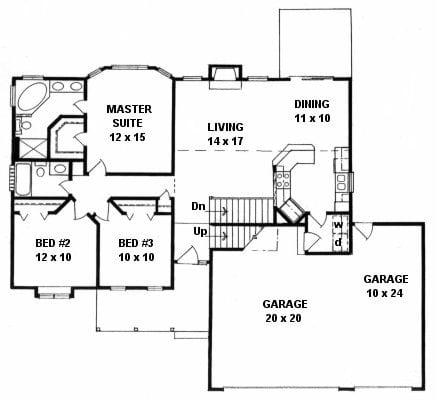

First Floor
Second Floor
Copyright 2026 ADG, Inc.
Loading...
Will this plan fit your lot?
Enter your lot dimensions to see if Plan #1286 (58' × 47') fits
Try the Lot Analysis Tool →Have a question about this plan?
Ask about modifications, pricing, or anything else about Plan #1286
Send an Enquiry →Unlimited Licensing
- ✓Print as many copies as you need
- ✓Have changes made by your local draftsman
- ✓Share with your builder, engineer, and permitting office
- ✓One-time purchase, no recurring fees
Details
Heated Area
1286 sq. ft
Roof
Truss 6/12 main pitch 8/12 front pitch
Floor
Truss or TJI
Walls
8' plates L=170' (insulated)
Ceilings
Vaulted - Living, Dining, Kitchen, & MBR
Basement
Approx. 1120 sq. ft View-out
Opt'l Finish
Rec room 2 Bedrooms Full Bath
Masonry
Approx. 178 sq. ft Front only (includes front offsets)
Kitchen
Approx. 11' x 10' Base cabs L=16' Upper cabs L=12' 18" Pantry
Misc
Csmt windows Gas-log Fireplace NOTE: Bonus room (8' ceiling w/5' sidewalls) and access stairs not included in square footage (aprox. 332 sq ft). 3rd Car Garage with 8' high door
