Plan #1287

Plan # 1287 - Ranch | Large render view

Specifications

  • 1287 sq ft
  • 50′ wide x 54′ deep
  • 2 bedrooms
  • 2 baths

Features

  • Vaulted Ceilings
  • Plant Shelves
  • Bay Window
  • Covered Porch
  • Walk-In Closet
  • 10' Ceilings

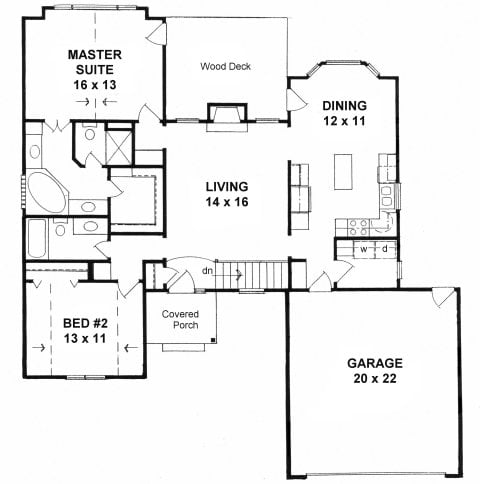

Floor Plan

Plan # 1287 - Ranch | First floor plan
Copyright 2001 ADG, Inc.

Elevation

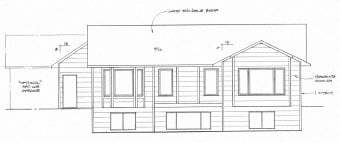

Rear Elevation

Purchase this Plan

Format





Options
(Click to Expand)

*(not available with instant delivery)

Extra Prints








Foundation





Walls



Mirror Reverse Plan



Rendering



Total: $

Modify this Plan

Click to Request a Quote

Similar Plans

No Similar Plans have been added

Details

Heated Area

1287 sq. ft

Roof

Truss
6/12 main pitch
8/12 front pitch

Floor

Truss or TJI

Walls

8' & 10' plates
L=182' (insulated)

Ceilings

10' - Living, Kitchen & Bed #2
Vaulted - MBR & Dining

Basement

Approx. 1160 sq. ft
View-out

(Opt'l Finish)

Rec room
2 Bedrooms
Full Bath

Masonry

Approx. 340 sq. ft
Front only (includes
front offsets)

Kitchen

Approx. 12' x 10'
Base cabs L=19'
Upper cabs L=19'
24" Pantry

Misc

Csmt windows
Gas-log Fireplace
Partial covered rear deck
