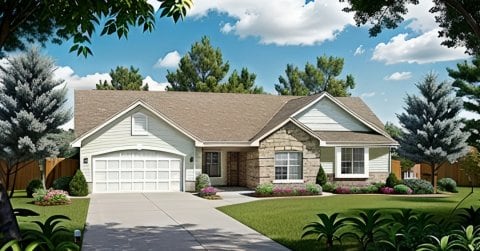

3-Bedroom Ranch House Plan — 1,289 Sq Ft (Plan 1289)
by American Design Gallery
3 bedroom Ranch w/ 3-Car Garage and Hearth room
1,289Sq Ft
3Bedrooms
2Baths
1Stories
54'Width
50'Depth
Features
- ●Vaulted Ceilings
- ●Plant Shelves
- ●Window Seat
- ●Bay Window
- ●Covered Porch
- ●Covered Deck
- ●Walk-In Closet
- ●Fireplace

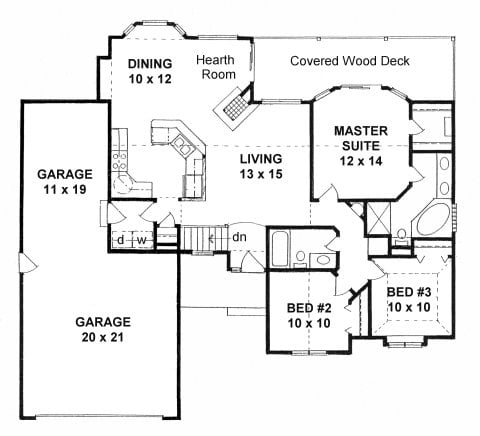

Floor Plan
Copyright 2026 ADG, Inc.

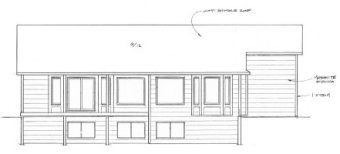

Elevation
Loading...
Will this plan fit your lot?
Enter your lot dimensions to see if Plan #1289 (54' × 50') fits
Try the Lot Analysis Tool →Have a question about this plan?
Ask about modifications, pricing, or anything else about Plan #1289
Send an Enquiry →Unlimited Licensing
- ✓Print as many copies as you need
- ✓Have changes made by your local draftsman
- ✓Share with your builder, engineer, and permitting office
- ✓One-time purchase, no recurring fees
Details
Heated Area
1289 sq. ft
Roof
Truss 6/12 main pitch 8/12 front pitch
Floor
Truss or TJI
Walls
8' plates L=177' (insulated)
Ceilings
Vaulted - Living, Dining, Kitchen, Bed #2, MBR & Bath Coffered - Bed #3
Basement
Approx. 1136 sq. ft View-out
Opt'l Finish
Rec room 2 Bedrooms Full Bath
Masonry
Approx. 224 sq. ft Front only (includes front offsets)
Kitchen
Approx. 12' x 10' Base cabs L=16' Upper cabs L=16'
Misc
Csmt windows Gas-log Fireplace
