3-Bedroom Ranch House Plan — 1,439 Sq Ft (Plan 1439)
by American Design Gallery
3 bedroom Ranch w/ angled walls and 2-Car Garage
1,439Sq Ft
3Bedrooms
2Baths
1Stories
52'Width
54'Depth
Features
- ●Plant Shelves
- ●Bay Window
- ●Covered Porch
- ●Walk-In Closet
- ●Fireplace
- ●10' Ceilings

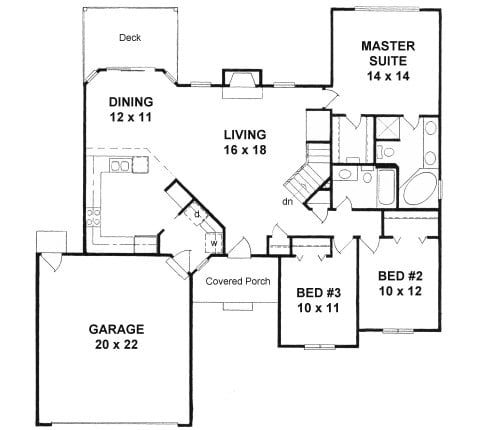

Floor Plan
Copyright 2026 ADG, Inc.

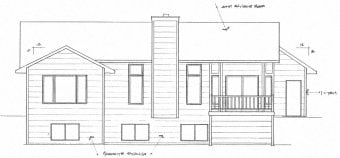

Elevation
Loading...
Will this plan fit your lot?
Enter your lot dimensions to see if Plan #1439 (52' × 54') fits
Try the Lot Analysis Tool →Have a question about this plan?
Ask about modifications, pricing, or anything else about Plan #1439
Send an Enquiry →Unlimited Licensing
- ✓Print as many copies as you need
- ✓Have changes made by your local draftsman
- ✓Share with your builder, engineer, and permitting office
- ✓One-time purchase, no recurring fees
Details
Heated Area
1439 sq. ft
Roof
Truss 6/12 main pitch 8/12 front pitch
Floor
Truss or TJI
Walls
8' plates L=186' (insulated)
Ceilings
10' - Living & Dining Coffer - MBR
Basement
Approx. 1316 sq. ft View-out (rear)
Opt'l Finish
Rec room 1 Bedroom Full Bath
Masonry
Approx. 184 sq. ft Front only (includes front offsets)
Kitchen
Approx. 12' x 13' Base cabs L=18' Upper cabs L=19' 36" Pantry
Misc
Csmt windows W/B Fireplace
