3-Bedroom Ranch House Plan — 1,602 Sq Ft (Plan 1602)
by American Design Gallery
3 (split) bedroom Ranch w/ Walk-in Pantry, Walk-in closets, Mud room and 3 car Garage
1,602Sq Ft
3Bedrooms
2Baths
1Stories
56'Width
50'Depth
Features
- ●Vaulted Ceilings
- ●Plant Shelves
- ●Bay Window
- ●Covered Porch
- ●Walk-In Closet
- ●Fireplace
- ●Walk-In Pantry

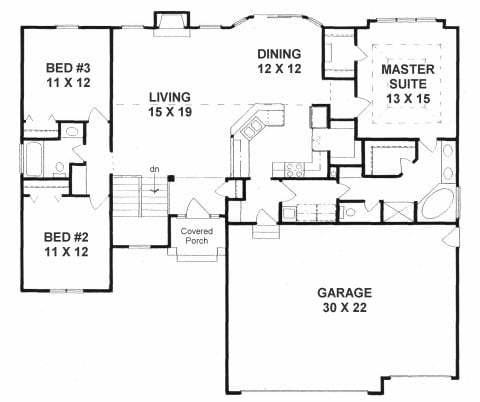

Floor Plan
Copyright 2026 ADG, Inc.

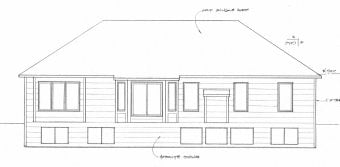

Elevation
Loading...
Will this plan fit your lot?
Enter your lot dimensions to see if Plan #1602 (56' × 50') fits
Try the Lot Analysis Tool →Have a question about this plan?
Ask about modifications, pricing, or anything else about Plan #1602
Send an Enquiry →Unlimited Licensing
- ✓Print as many copies as you need
- ✓Have changes made by your local draftsman
- ✓Share with your builder, engineer, and permitting office
- ✓One-time purchase, no recurring fees
Details
Heated Area
1602 sq. ft
Roof
Truss 8/12 pitch
Floor
Truss or TJI
Walls
8' & 10' plates L=189' (insulated)
Ceilings
8' Except... Vaulted - Living, Dining & Kitchen Coffered - MBR 10'- Entry 9'- Garage
Basement
Approx. 1480 sq. ft View-out
Opt'l Finish
Rec room 2 Bedrooms Full Bath
Masonry
Approx. 260 sq. ft Front only (includes front offsets)
Kitchen
Approx. 12' x 10' Base cabs L=16' Upper cabs L=16'
Misc
Csmt windows Gas-log Fireplace Hidden Pantry Mudroom Bench Deep sink
