3-Bedroom Ranch House Plan — 1,611 Sq Ft (Plan 1611)
by American Design Gallery
3 bedroom Ranch w/ Covered Porch & Side-Load Garage
1,611Sq Ft
3Bedrooms
2Baths
1Stories
58'Width
55'Depth
Features
- ●Vaulted Ceilings
- ●Plant Shelves
- ●Bay Window
- ●Covered Porch
- ●Walk-In Closet
- ●Fireplace
- ●9' Ceilings
- ●Walk-In Pantry

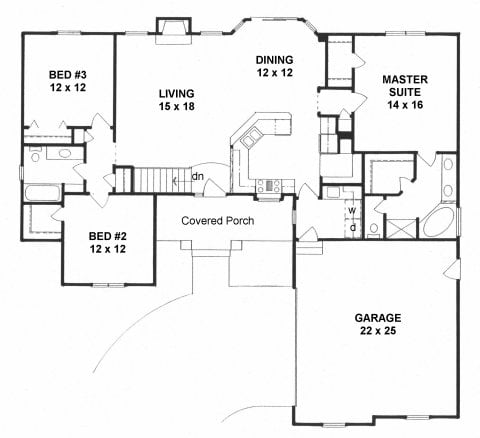

Floor Plan
Copyright 2026 ADG, Inc.

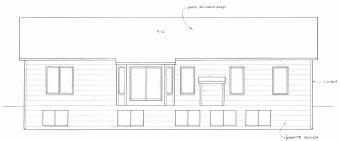

Elevation
Loading...
Will this plan fit your lot?
Enter your lot dimensions to see if Plan #1611 (58' × 55') fits
Try the Lot Analysis Tool →Have a question about this plan?
Ask about modifications, pricing, or anything else about Plan #1611
Send an Enquiry →Unlimited Licensing
- ✓Print as many copies as you need
- ✓Have changes made by your local draftsman
- ✓Share with your builder, engineer, and permitting office
- ✓One-time purchase, no recurring fees
Details
Heated Area
1611 sq ft
Roof
Truss 6/12 main pitch 7.5 & 8/12 front pitch
Floor
Truss or TJI
Walls
8' & 9' plates L=188' (insulated)
Ceilings
9' & Vaulted - Living Dining, Kitchen (Bed #2 vaults to 9')
Basement
Approx. 1486 sq ft View-out
Opt'l Finish
Rec room 2 Bedrooms Full Bath
Masonry
Approx. 476 sq. ft Front only (includes front offsets)
Kitchen
Approx. 14' x 11' Base cabs L=19' Upper cabs L=14'
Misc
Csmt windows Gas-log Fireplace
