3-Bedroom Ranch House Plan — 2,002 Sq Ft (Plan 2002)
by American Design Gallery
3 bedroom Ranch w/ Walk-in pantry, Hearth room and 3-Car
2,002Sq Ft
3Bedrooms
2Baths
1Stories
68'Width
50'Depth
Features
- ●Vaulted Ceilings
- ●Plant Shelves
- ●Bay Window
- ●Covered Porch
- ●Covered Deck
- ●Walk-In Closet
- ●Fireplace
- ●Walk-In Pantry
Floor Plan
Copyright 2026 ADG, Inc.

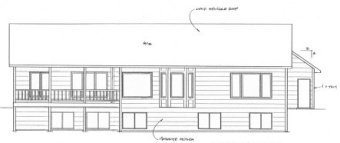

Elevation
Loading...
Will this plan fit your lot?
Enter your lot dimensions to see if Plan #2002 (68' × 50') fits
Try the Lot Analysis Tool →Have a question about this plan?
Ask about modifications, pricing, or anything else about Plan #2002
Send an Enquiry →Unlimited Licensing
- ✓Print as many copies as you need
- ✓Have changes made by your local draftsman
- ✓Share with your builder, engineer, and permitting office
- ✓One-time purchase, no recurring fees
Details
Heated Area
2002 sq. ft
Roof
Truss 6/12 main pitch 8/12 front pitch
Floor
Truss or TJI
Walls
9' plates (12'-Dining) L=236' (insulated)
Ceilings
Vaulted - Living, Hearth, Nook, Kitchen & MBR 12'- Dining 9'- Bed's #2 & 3
Basement
Approx. 1842 sq. ft View-out
Opt'l Finish
Rec room 2 Bedrooms Full Bath
Masonry
Approx. 472 sq. ft Front only Brick - 320 Stone - 152 (Includes front offsets)
Kitchen
Approx. 12' x 12' Base cabs L=16' Upper cabs L=15' Walk-in Pantry
Misc
Csmt windows Gas-log Fireplace
