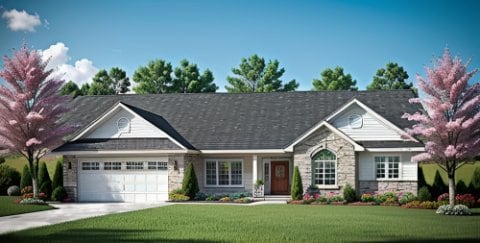

3-Bedroom Ranch House Plan — 1,839 Sq Ft (Plan 1839)
by American Design Gallery
3 bedroom Ranches - Covered Deck
1,839Sq Ft
3Bedrooms
2.5Baths
1Stories
64'Width
52'Depth
Features
- ●Bay Window
- ●Covered Porch
- ●Covered Deck
- ●Walk-In Closet
- ●Fireplace
- ●10' Ceilings

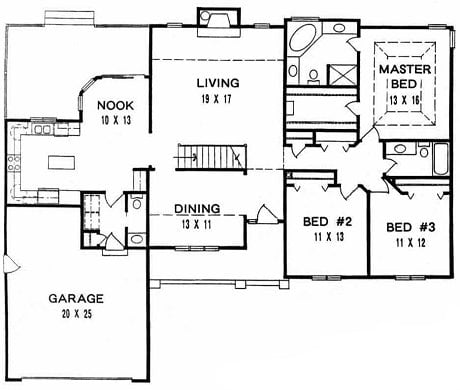

Floor Plan
Copyright 2026 ADG, Inc.
Loading...
Will this plan fit your lot?
Enter your lot dimensions to see if Plan #1839 (64' × 52') fits
Try the Lot Analysis Tool →Have a question about this plan?
Ask about modifications, pricing, or anything else about Plan #1839
Send an Enquiry →Unlimited Licensing
- ✓Print as many copies as you need
- ✓Have changes made by your local draftsman
- ✓Share with your builder, engineer, and permitting office
- ✓One-time purchase, no recurring fees
Details
Heated Area
1839 sq. ft
Roof
Truss 6/12 main pitch 8/12 front pitch
Floor
Truss or TJI
Walls
8' plates L=210' (insulated)
Ceilings
Slope to 10'- Living & Dining Coffer - MBR
Basement
Approx. 1700 sq. ft Full Basement
Opt'l Finish
Rec room 1 Bedroom Full Bath
Masonry
Approx. 260 sq. ft Front only
Kitchen
Approx. 11' x 12' Base cabs L=23' Upper cabs L=21' 36" Pantry 36" Desk
Misc
Csmt windows W/B Fireplace
