2-Bedroom Duplex House Plan — 2,062 Sq Ft (Plan 2062)
by American Design Gallery|Duplex Ranch Style Plan
Plan 2062 is an expertly designed duplex that offers a total of 2,062 square feet, with each unit providing 1,031 square feet of living space. This single-story layout is perfect for families or those looking for investment opportunities. Each unit features two spacious bedrooms and two bathrooms, ensuring comfort and privacy. The living areas boast vaulted ceilings, enhancing the airy and open feel of the home. The covered porch adds a charming outdoor space for relaxation. With thoughtful details like walk-in closets and plant shelves, this duplex combines functionality with style. The optional basement finish provides additional living space, including a recreational room, an extra bedroom, and a full bath, making this duplex adaptable to various needs. Its appealing exterior, complete with masonry accents and a well-designed roofline, adds to the overall allure of the home. This plan is ideal for those seeking a blend of comfort, style, and practicality in a duplex design.
Read full description →Features
- ●Vaulted Ceilings
- ●Plant Shelves
- ●Covered Porch
- ●Walk-In Closet
Key Highlights
- ●2 spacious bedrooms per unit
- ●Vaulted ceilings for an open feel
- ●Charming covered porch
- ●Walk-in closet in master suite
- ●Optional basement finish available

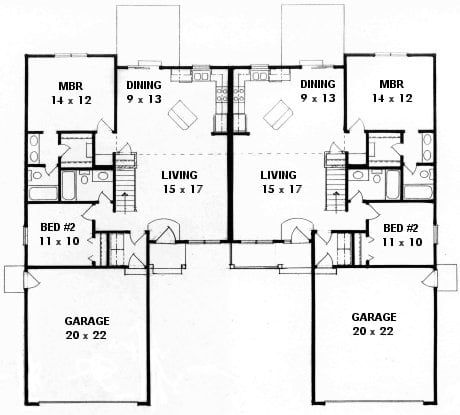

Floor Plan
Copyright 2026 ADG, Inc.
Loading...
Will this plan fit your lot?
Enter your lot dimensions to see if Plan #2062 (66' × 56') fits
Try the Lot Analysis Tool →Have a question about this plan?
Ask about modifications, pricing, or anything else about Plan #2062
Send an Enquiry →Unlimited Licensing
- ✓Print as many copies as you need
- ✓Have changes made by your local draftsman
- ✓Share with your builder, engineer, and permitting office
- ✓Build the plan as many times as you want
- ✓One-time purchase, no recurring fees
Details
Heated Area
2062 sq. ft (1031 each side)
Roof
Truss 7/12 main pitch
Floor
Truss or TJI
Walls
8' & 9' plates L=228' (insulated, including party wall)
Ceilings
Vaulted- Living, Dining, Kitchen & MBR
Basement
Approx. 942 sq. ft (each unit)
Opt'l Finish
Rec room 1 Bedroom Full Bath
Masonry
Approx. 90 sq. ft front only
Kitchen
Approx. 9' x 11' Base cabs L=16' Upper cabs L=14'
Misc
Csmt windows
Similar Plans
- Plan #19442 Bedroom Ranch Duplex - Corner Lot — 1944 sq ft
- Plan #1967Duplex Ranch w/ 2 Bedrooms — 1967 sq ft
- Plan #2078Ranch Style Duplex House Plan — 2078 sq ft
About Plan #2062

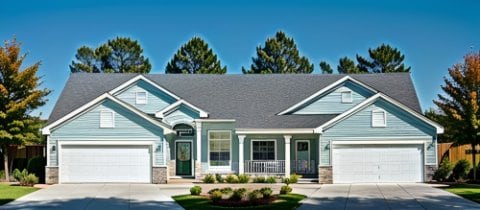

Exterior and Curb Appeal
The exterior of Plan 2062 is designed with both aesthetics and functionality in mind. The charming facade features a covered porch, providing a welcoming entrance and a perfect spot for outdoor relaxation. The use of masonry in the front adds a touch of elegance and durability, while the roof's 7/12 pitch ensures efficient water drainage and enhances the home's overall appeal. The duplex's symmetric design is visually pleasing and maximizes space efficiency, making it an attractive choice for both homeowners and potential renters.
Main Level Layout
Inside, each unit of this duplex offers a seamless blend of style and practicality. The main level is highlighted by an open-concept living, dining, and kitchen area, where vaulted ceilings create a sense of spaciousness. The kitchen, approximately 9' x 11', is equipped with ample base and upper cabinets, providing generous storage options. This open layout is perfect for entertaining, allowing for easy flow between spaces and ensuring that the kitchen remains the heart of the home.
Bedroom and Bathroom Arrangement
Each unit includes two well-appointed bedrooms. The master bedroom, measuring 14' x 12', features a walk-in closet and an en-suite bathroom, offering a private retreat within the home. The second bedroom, sized at 11' x 10', is conveniently located near the second bathroom, making it ideal for guests or family members. Both bathrooms are designed to maximize comfort and efficiency, with contemporary fixtures and finishes that enhance the home's modern appeal.
Notable Features
Plan 2062 is designed with a range of features that enhance its livability and appeal. The inclusion of plant shelves provides opportunities for personalized decor, while casement windows allow for abundant natural light, brightening the interior spaces. The heated area of each unit totals 1,031 square feet, ensuring ample living space. An optional basement finish expands the home's versatility, offering a recreational room, an additional bedroom, and a full bath. This option is ideal for those needing extra space for guests, hobbies, or home offices.
Additional Considerations
With a width of 66' and a depth of 56', this duplex is designed to fit a variety of lot sizes while providing generous living spaces within. The duplex's two-car garages, each measuring 20' x 22', offer ample parking and storage solutions, enhancing the home's convenience. The combination of practical design, architectural appeal, and optional features makes Plan 2062 a versatile and attractive choice for a wide range of homeowners and investors.
