2-Bedroom Duplex House Plan — 2,190 Sq Ft (Plan 2190)
by American Design Gallery
Duplex House Plan
2,190Sq Ft
2Bedrooms
2Baths
1Stories
72'Width
48'Depth
Features
- ●Vaulted Ceilings
- ●Plant Shelves
- ●Covered Porch
- ●Walk-In Closet

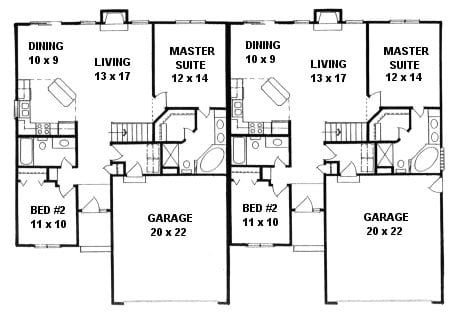

Floor Plan
Copyright 2026 ADG, Inc.

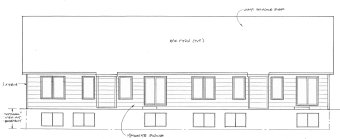

Elevation
Loading...
Will this plan fit your lot?
Enter your lot dimensions to see if Plan #2190 (72' × 48') fits
Try the Lot Analysis Tool →Have a question about this plan?
Ask about modifications, pricing, or anything else about Plan #2190
Send an Enquiry →Unlimited Licensing
- ✓Print as many copies as you need
- ✓Have changes made by your local draftsman
- ✓Share with your builder, engineer, and permitting office
- ✓One-time purchase, no recurring fees
Details
Heated Area
2190 sq. ft
Roof
Truss 6/12 main pitch 8/12 front pitch
Floor
Truss or TJI
Walls
8' plates L=258' (insulated, including party wall)
Ceilings
Vaulted- Living, Dining, Kitchen & MBR
Basement
Approx. 1004 sq. ft (each unit)
Opt'l Finish
Rec room 1 Bedroom Full Bath
Masonry
Approx. 134 sq. ft front only
Kitchen
Approx. 10' x 10' Base cabs L=16' Upper cabs L=14'
Misc
Csmt windows Gas-log Fireplace's
