Plan #2211

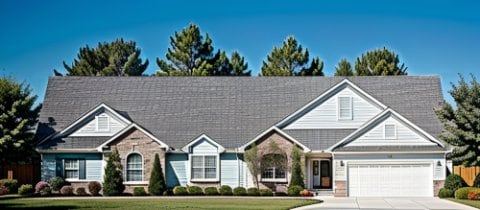

Plan # 2211 - Duplex Ranch | Large render view

Specifications

  • 2211 sq ft
  • 72′ wide x 52′ deep
  • 2 bedrooms
  • 2 baths

Features

  • Vaulted Ceilings
  • Plant Shelves
  • Covered Porch
  • Walk-In Closet

Floor Plan

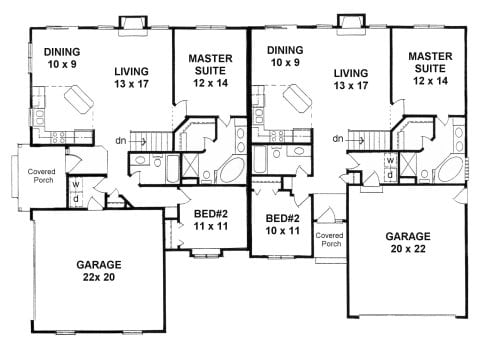

Plan # 2211 - Duplex Ranch | First floor plan
Copyright 1970 ADG, Inc.

Elevation

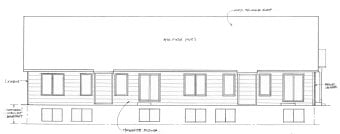

Rear Elevation

Purchase this Plan

Format





Options
(Click to Expand)

*(not available with instant delivery)

Extra Prints








Foundation





Walls



Mirror Reverse Plan



Rendering



Total: $

Modify this Plan

Click to Request a Quote

Similar Plans

No Similar Plans have been added

Details

Heated Area

2211 sq. ft

Roof

Truss
8/12 pitch

Floor

Truss or TJI

Walls

8' plates
L='287'
(insulated,
including party
wall)

Ceilings

Vaulted- Living, Dining,
Kitchen & MBR

Basement

Approx. 1004 sq. ft
(each unit)

(Opt'l Finish)

Rec room
1 Bedroom
Full Bath

Masonry

Approx. 460 sq. ft
(includes front
and left side)

Kitchen

Approx.
Base cabs L=16'
Upper cabs L=14'

Misc

Csmt windows
Gas-log Fireplace's
