3-Bedroom Duplex House Plan — 2,486 Sq Ft (Plan 2486)
by American Design Gallery
3 bedroom duplex with safe room
2,486Sq Ft
3Bedrooms
2Baths
1Stories
68'Width
54'Depth
Features
- ●Vaulted Ceilings
- ●Plant Shelves
- ●Large Closet
- ●Covered Porch
- ●Covered Deck
- ●Walk-In Closet
- ●Fireplace

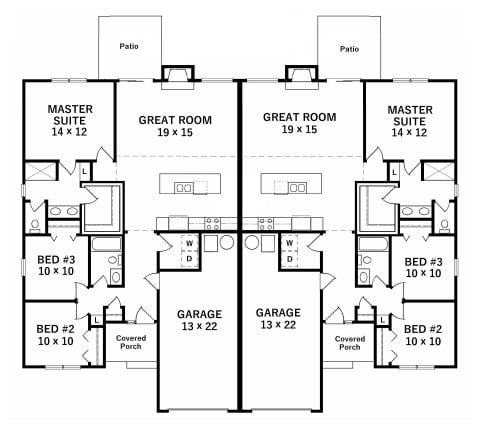

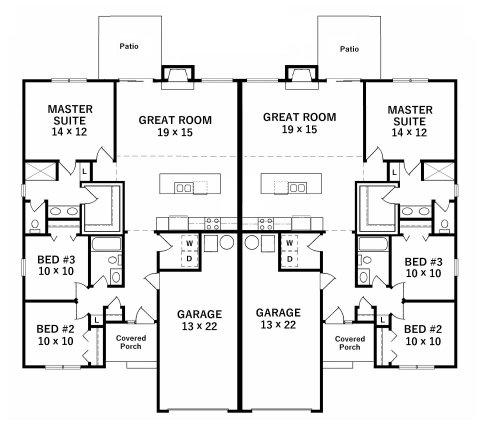

Floor Plan
Copyright 2026 ADG, Inc.

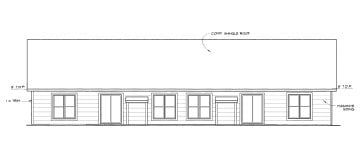

Elevation
Loading...
Will this plan fit your lot?
Enter your lot dimensions to see if Plan #2486 (68' × 54') fits
Try the Lot Analysis Tool →Have a question about this plan?
Ask about modifications, pricing, or anything else about Plan #2486
Send an Enquiry →Unlimited Licensing
- ✓Print as many copies as you need
- ✓Have changes made by your local draftsman
- ✓Share with your builder, engineer, and permitting office
- ✓One-time purchase, no recurring fees
Details
Heated Area
2486 sq. ft
Roof
Truss 6/12 main pitch 8/12 front pitch
Floor
Slab on grade
Walls
8' plates L=250' (insulated, including party wall)
Ceilings
Vaulted - Living, Dining, Kitchen & MBR
Basement
none
Opt'l Finish
N/A
Masonry
Approx. 256 sq. ft Front & offsets only
Kitchen
Approx. 13' x 8' Base cabs L=17' Upper cabs L=11' 9' open Bar
Misc
Safe Room MBR closet 24" Pantry Cabinet Gas-log Fireplace
