2-Bedroom Duplex House Plan — 2,616 Sq Ft (Plan 2616)
by American Design Gallery|2-story duplex plan
Plan 2616 offers a practical duplex layout, featuring 2 bedrooms and 2.5 bathrooms per unit. Encompassing 2,616 square feet total, each unit provides 1,308 square feet of comfortable living space. The design includes vaulted ceilings and bay windows, enhancing natural light and space. A covered porch welcomes visitors, while brick wainscot adds classic charm to the exterior.
Read full description →Features
- ●Vaulted Ceilings
- ●Bay Window
- ●Covered Porch
- ●Walk-In Closet
- ●Fireplace
- ●9' Ceilings
Key Highlights
- ●2 bedrooms, 2.5 bathrooms per unit
- ●Total 2,616 sq ft, 1,308 sq ft per unit
- ●Vaulted ceilings & bay windows
- ●Brick wainscot exterior
- ●Covered porch
- ●Fireplace in living area
Floor Plans

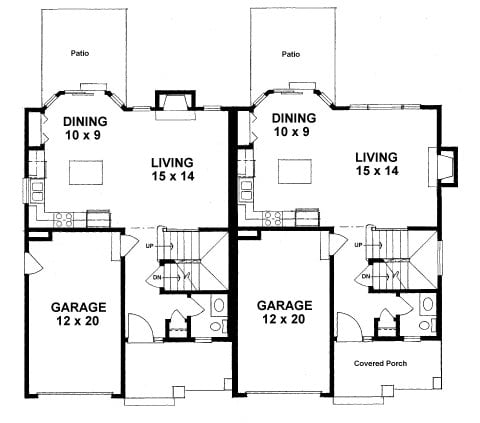

First Floor

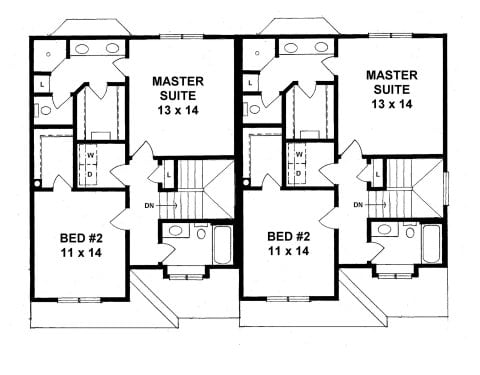

Second Floor
Copyright 2026 ADG, Inc.

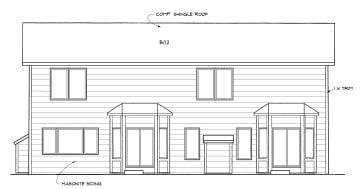

Elevation
Loading...
Will this plan fit your lot?
Enter your lot dimensions to see if Plan #2616 (52' × 37') fits
Try the Lot Analysis Tool →Have a question about this plan?
Ask about modifications, pricing, or anything else about Plan #2616
Send an Enquiry →Unlimited Licensing
- ✓Print as many copies as you need
- ✓Have changes made by your local draftsman
- ✓Share with your builder, engineer, and permitting office
- ✓Build the plan as many times as you want
- ✓One-time purchase, no recurring fees
Details
Heated Area
2616 each unit...1308 main floor... 560 upper floor.. 748
Roof
truss 5/12 pitch main 8/12 pitch front
Floor
2 x 10
Walls
9' plates main floor 8' plates upper floor
Ceilings
9' main floor Vaulted Master Suite
Basement
approx. 550 sq ft each unit
Opt'l Finish
Bonus room "rough" in 3/4 bath
Masonry
Brick wainscot
Kitchen
10 x 14
Misc
4' x 4' corner shower in MBR bath NOTE: Overall dimensions include 2' cantilevered fireplaces and bay windows
