1-Bedroom Duplex House Plan — 1,776 Sq Ft (Plan 1776)
by American Design Gallery|One bedroom duplex
Plan 1776 offers a charming and efficient duplex layout, perfect for those seeking a cozy residence. Spanning 1,776 square feet, this single-story home features two individual units, each with a master suite, a vaulted living area, and a functional kitchen. The shared covered porch and private patios extend the living space outdoors, making it ideal for enjoying serene mornings or hosting intimate gatherings. With its appealing design and practical amenities, this duplex provides a balanced blend of comfort and style.
Read full description →Features
- ●Vaulted Ceilings
- ●Covered Porch
- ●Walk-In Closet
Key Highlights
- ●1 bedroom, 1 bathroom per unit
- ●Vaulted ceilings in living areas
- ●Covered porch & private patio
- ●Walk-in closet in master suite
- ●1,776 sq ft total living space

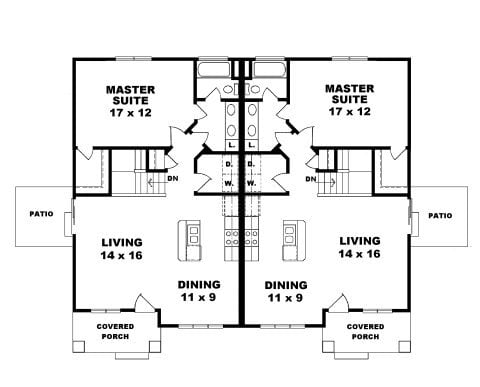

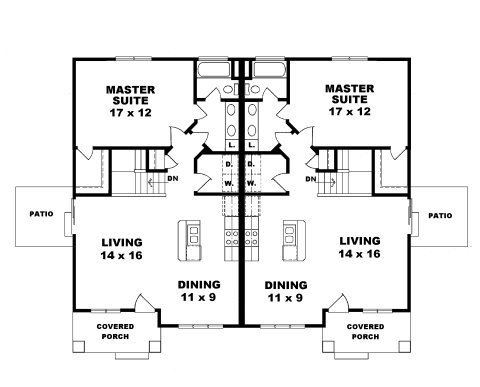

Floor Plan
Copyright 2026 ADG, Inc.

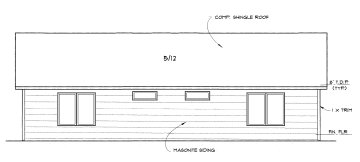

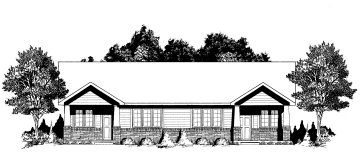

Elevation
Loading...
Will this plan fit your lot?
Enter your lot dimensions to see if Plan #1776 (48' × 42') fits
Try the Lot Analysis Tool →Have a question about this plan?
Ask about modifications, pricing, or anything else about Plan #1776
Send an Enquiry →Unlimited Licensing
- ✓Print as many copies as you need
- ✓Have changes made by your local draftsman
- ✓Share with your builder, engineer, and permitting office
- ✓Build the plan as many times as you want
- ✓One-time purchase, no recurring fees
Details
Heated Area
1776 888 ea unit
Roof
Truss 5/12 pitch (main) 7/12 pitch (front)
Floor
Truss or TJI
Walls
8' plates L=152' (insulated, including party wall)
Ceilings
Vaulted - Living, Dining, Kitchen & Master Suite
Basement
Approx. 1676 sq. ft (838 each unit) Full
Opt'l Finish
Rec room 1 Bedroom Full Bath
Masonry
Approx. 288 sq. ft Front only (includes front offsets)
Kitchen
Approx. 8' x 9' Base cabs L=12' Upper cabs L=9'
Misc
Csmt windows
Similar Plans
- Plan #1854Bi-level Duplex plan - Narrow Lot — 1854 sq ft
- Plan #18602 Bedroom Ranch Duplex — 1860 sq ft
- Plan #19442 Bedroom Ranch Duplex - Corner Lot — 1944 sq ft
About Plan #1776
Exterior and Curb Appeal
The exterior of Plan 1776 boasts a welcoming façade, featuring a combination of masonry and siding that gives it a classic yet contemporary look. The duplex is symmetrically designed, with each unit having its own entrance leading up to a charming covered porch, perfect for enjoying a morning coffee or greeting neighbors. The 48-foot width ensures a substantial presence on any lot, while the thoughtful landscaping adds to the home's inviting curb appeal.
Main Level Layout
Inside, each unit of this duplex is designed to maximize comfort and functionality over its 888 square feet. The open-concept living area is enhanced by vaulted ceilings, creating an airy and spacious atmosphere. The living room flows seamlessly into the dining area and kitchen, where the efficient layout includes ample cabinetry and counter space. This design promotes a harmonious flow, ideal for both daily living and entertaining.
Bedroom and Bathroom Arrangement
The master suite in each unit offers a peaceful retreat, featuring a 17 by 12-foot space that accommodates a variety of furniture arrangements. A walk-in closet provides generous storage, while the adjoining bathroom is conveniently accessible from both the bedroom and main living area. This thoughtful layout ensures privacy and ease, catering to a modern lifestyle.
Notable Features
Among the standout features of Plan 1776 are its vaulted ceilings and strategic use of space. The design incorporates ample storage options, including a large walk-in closet in each master suite. Each unit also includes a private patio, extending the living area outdoors and offering a perfect spot for relaxation or small gatherings. With the option to finish the basement for additional living space, this duplex offers flexibility to accommodate varying needs.
