3-Bedroom Duplex House Plan — 1,854 Sq Ft (Plan 1854)
by American Design Gallery|Bi-level Duplex plan - Narrow Lot
Plan 1854 is a thoughtfully designed duplex offering a total of 1,854 square feet of living space. This one-story home features three bedrooms and two and a half bathrooms, providing ample room for families or tenants. The design includes modern amenities such as vaulted ceilings that enhance the living, dining, and kitchen areas, creating an open and airy atmosphere. A covered porch offers a welcoming outdoor space, perfect for relaxation or social gatherings. The plan also includes optional basement finishing, adding versatility with potential for additional bedrooms or a recreational area. With a truss roof and masonry accents, this home combines durability with aesthetic appeal, making it an excellent investment for homeowners and developers alike. Conveniently situated within a 54-foot width and 40-foot depth, this duplex fits well on a variety of lot sizes. The thoughtful layout ensures privacy and comfort, with a spacious master suite and well-appointed secondary bedrooms, making Plan 1854 an ideal choice for modern living.
Read full description →Features
- ●Vaulted Ceilings
- ●Plant Shelves
- ●Covered Porch
Key Highlights
- ●1,854 sq ft total living space
- ●3 bedrooms, 2.5 bathrooms per unit
- ●Vaulted ceilings for spacious feel
- ●Covered porch for outdoor enjoyment
- ●Optional basement finish for flexibility
- ●Truss roof with masonry accents
Floor Plans

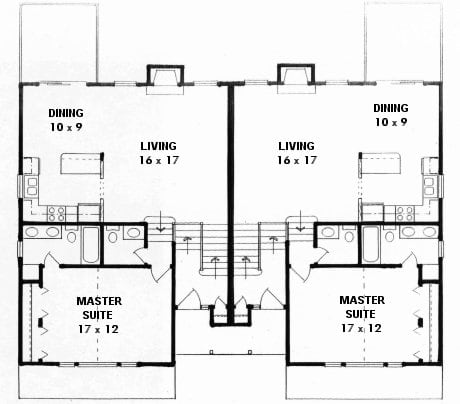

First Floor

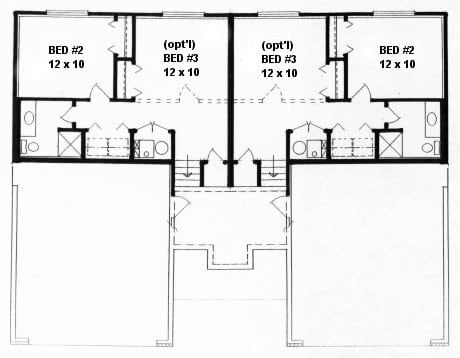

Second Floor
Copyright 2026 ADG, Inc.
Loading...
Will this plan fit your lot?
Enter your lot dimensions to see if Plan #1854 (54' × 40') fits
Try the Lot Analysis Tool →Have a question about this plan?
Ask about modifications, pricing, or anything else about Plan #1854
Send an Enquiry →Unlimited Licensing
- ✓Print as many copies as you need
- ✓Have changes made by your local draftsman
- ✓Share with your builder, engineer, and permitting office
- ✓Build the plan as many times as you want
- ✓One-time purchase, no recurring fees
Details
Heated Area
1854 sq. ft (each unit has 927 sq ft of which 360 sq ft is above Garage)
Roof
Truss 6/12 pitch
Floor
Truss or TJI
Walls
8' plates L=236' (insulated, including party wall)
Ceilings
Vaulted- Living, Dining, Kitchen & MBR 17'- Foyer
Basement
Approx. 464 sq. ft (each unit)
Opt'l Finish
1 or 2 Bedrooms 3/4 Bath
Masonry
Approx. 24 sq. ft (front of Garage accents only)
Kitchen
Approx. 10' x 8' Base cabs L=16' Upper cabs L=13'
Misc
Csmt windows Gas Log fireplace
Similar Plans
- Plan #1776One bedroom duplex — 1776 sq ft
- Plan #18602 Bedroom Ranch Duplex — 1860 sq ft
- Plan #19442 Bedroom Ranch Duplex - Corner Lot — 1944 sq ft
About Plan #1854
Exterior and Curb Appeal
Plan 1854 showcases a classic duplex design with an inviting exterior that merges functionality with style. The facade is adorned with subtle masonry accents at the front, enhancing its curb appeal while maintaining a clean, modern look. The covered porch serves as a welcoming entry point, offering a charming space for outdoor seating or plants. The 6/12 pitch truss roof not only complements the architectural style but also provides durability against weather elements, ensuring long-lasting protection for the home.
Main Level Layout
The main level of each unit in this duplex is efficiently laid out to maximize living space within a compact structure. Each unit provides 927 square feet of heated living area, ensuring ample room for comfortable living. The open-concept design seamlessly integrates the living, dining, and kitchen areas, all enhanced by vaulted ceilings that create a sense of spaciousness. The kitchen, equipped with extensive cabinetry and counter space, is designed to facilitate both everyday meal preparation and larger gatherings.
Bedroom and Bathroom Arrangement
Each unit in Plan 1854 includes three bedrooms and two and a half bathrooms, offering a balanced arrangement that caters to family needs or tenant preferences. The master suite is a highlight, featuring its own vaulted ceiling, which adds to the luxurious feel of the space. The suite is complemented by a well-appointed en-suite bathroom. Secondary bedrooms are strategically located to ensure privacy and are versatile enough to serve as guest rooms, home offices, or children’s bedrooms. The additional bathrooms are conveniently placed, providing easy access for both residents and guests.
Notable Features
This duplex plan includes several notable features that enhance its functionality and appeal. Vaulted ceilings are a significant aspect, contributing to the open, airy feel of the main living areas. Plant shelves are incorporated into the design, offering opportunities for personalized decor and added storage. The inclusion of a gas log fireplace adds warmth and ambiance, making the living space cozy and inviting. Additionally, the optional basement finish adds versatility, allowing for the creation of extra living space, whether for additional bedrooms or recreational use. This flexibility makes Plan 1854 adaptable to changing family needs or tenant configurations.
